Home > 10 Gigabit Switch >

3750 Series Cisco 12 Port 10 Gig Switch , 10gb Desktop Switch WS-C3750X-12S-E

Product Categories
SENYDA(HK)Technology Limited
Contact Now

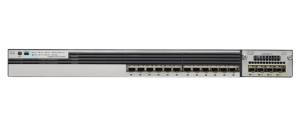

3750 Series Cisco 12 Port 10 Gig Switch , 10gb Desktop Switch WS-C3750X-12S-E

Brand Name : CISCO

Model Number : WS-C3750X-12S-E

Certification : FCC

Place of Origin : USA

MOQ : 1/unit

Price : can negotiate

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 20/unit/day

Delivery Time : 3 days

Packaging Details : 58*55*25cm

Communicatio : Full-Duplex&Half-Duplex

Ports : 12 Gigabit Ethernet SFP models

Switch Type : Gigabit Ethernet

Products Status : In Stock

Device Type : Switch - 48 ports - Managed

Warranty : 1 year warranty

Enclosure Type : Desktop, rack-mountable 1U

Contact Now

Cisco Catalyst 3750 Gigabit Network 12 Port Ethernet Switch WS-C3750X-12S-E

Product Information

Cisco Catalyst 3750-X Series Switch WS-C3750X-12S-E is an enterprise-class lines of stackable and standalone switches, respectively.

Catalyst 3750-X switches provide high availability, scalability, security, energy efficiency, and ease of operation with innovative features such as Cisco StackPower, IEEE 802.3at Power over Ethernet Plus (PoE+) configurations, optional network modules, redundant power supplies, and Media Access Control Security (MACsec) features.

Manufacturer:
Cisco
Product ID:
WS-C3750X-12S-E
Product Description:
Catalyst 3750X 12 Port GE SFP IP Services
Product Type:
Layer 3 Switch

Interfaces/Ports
48 x 10/100/1000 Ethernet ports
Token Ring Port:
No
LRE Port:
No
Stack Port:
Yes
I/O Expansions
4 GB
Number of Total Expansion Slots:
13
Expansion Slot Type:
SFP
Number of SFP Slots:
12

More Details

Below show you more informations of WS-C3750X-12S-E

Expansion / Connectivity
Interfaces 1 x USB - Type A
1 x console - mini-USB Type B - management
1 x RS-232 - RJ-45 - management
1 x 10Base-T/100Base-TX - RJ-45 - management
2 x network stack device
12 x SFP (mini-GBIC)
Expansion Slots 1 (total) / 1 (free) x Expansion Slot
Power
Power Device Internal power supply
Installed Qty 1 (installed) / 2 (max)
Power Redundancy Optional
Power Redundancy Scheme 1+1 (with optional power supply)
Voltage Required AC 120/230 V ( 50/60 Hz )
Features Redundant Power System (RPS) connector
Miscellaneous
Rack Mounting Kit Optional
MTBF 194,224 hours
Compliant Standards TUV GS, CISPR 22 Class A, GOST, cUL, NOM, VCCI Class A ITE, EN55022 Class A, CB, AS/NZS 60950-1, AS/NZ 3548 Class A, CCC, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, KCC, FCC Part 15 A, CSA C22.2 No. 60950-1
Software / System Requirements
Software Included Cisco IOS IP Services
Environmental Parameters
Min Operating Temperature -5 °C
Humidity Range Operating 5 - 95% (non-condensing)
Min Storage Temperature -40 °C
Max Storage Temperature 70 °C


When purchasing switch, customers have flexibility to choose any group of network modules described below:

Product Number Product Description
C3KX-NM-1G= Catalyst 3K-X 1G Network Module
C3KX-NM-10G= Catalyst 3K-X 10G Network Module
C3KX-NM-10GT= Catalyst 3K-X 10G-T Network Module
C3KX-SM-10G= Catalyst 3K-X 10G Service Module Spare

Related Products

Below table show some recommended modules of this switch.

Models Description
C3KX-NM-1G Four GbE port network module
C3KX-NM-10G Two 10GbE SFP+ ports network module with four physical ports with two SFP+ and two regular SFP ports
C3KX-NM-10GT Two 10GB -T ports network module
C3KX-SM-10G Service Module with two 10GbE SFP+ ports network module for Netflow and MACsec encryption
