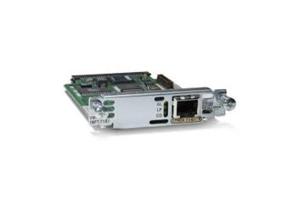

Cisco VWIC-1MFT-G703= 1-Port RJ-48 Multiflex Trunk G.703 Voice/WAN Interface Card

Product Categories
SENYDA(HK)Technology Limited
Contact Now

Cisco VWIC-1MFT-G703= 1-Port RJ-48 Multiflex Trunk G.703 Voice/WAN Interface Card

  • 1
  • 2

Brand Name : CISCO

Model Number : VWIC2-1MFT-G703=

Certification : FCC

Place of Origin : USA

MOQ : 1/unit

Price : $297/unit

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 40/unit/day

Delivery Time : 3 day

Packaging Details : Original New Cisco Box Packing

Product Name : VWIC2-1MFT-G703=

Products Status : In Stock

Warranty : 1 year

Form Factor : Plug-in module

Data Transfer Rate : 2.048 Mbps

Line Rate : T-1/E-1

Contact Now

Cisco VWIC-1MFT-G703= 1-Port RJ-48 Multiflex Trunk G.703 Voice/WAN Interface Card

Product Information

The Cisco Second-Generation 1- and 2-Port T1/E1 Multiflex Trunk Voice/WAN Interface Cards (MFT VWIC2s) support data and voice applications on the Cisco 1721 (data only), 1751, and 1760 Modular Access Routers, the Cisco 2600XM Multiservice Router, the Cisco 2691 Multiservice Platform, the Cisco 3662 Telco Versatile DCN Access Platform, the Cisco 3725 and 3745 Multiservice Routers, and the Cisco 1841 (data only), 2801, 2811, 2821, 2851, 3825, and 3845 Integrated Services Routers (ISRs).

Device Type Expansion module
Form Factor Plug-in module
Dimensions (WxDxH) 7.9 cm x 12.2 cm x 2.1 cm
Weight 57 g
Data Transfer Rate 2.048 Mbps
Line Rate T-1/E-1
Designed For Cisco 17XX, 1921 4-pair, 1921 ADSL2+, 19XX, 26XX, 2811 2-pair, 28XX, 28XX 4-pair, 28XX V3PN, 29XX, 36XX, 37XX, 38XX, 38XX V3PN, 39XX

More Details

Below shows more informations

Additional Information:

  • Although unstructured G.703 operation is particular to E1 operation, the VWIC2 card also support structured T1 operation
  • Controller local loopbacks
  • Controller remote loopbacks
  • Integrated CSU/DSU MIB
  • Firmware to support T1 and E1 Layer 1 homologation
  • User-initiated VWIC reset and field-programmable gate array (FPGA) download
  • Voice support (includes DS0-group and PRI-group configuration)
  • MFT VWIC2 has an onboard slot for a multiflex trunk dedicated echo cancellation module
  • Dedicated Echo Cancellation module is not supported on MFT VWIC2 when MFT VWIC2 is used on the Cisco 1751 or 1760
  • Although unstructured G.703 operation is particular to E1 operation, the VWIC2 card also support structured T1 operation
  • Controller local loopbacks
  • Controller remote loopbacks
  • Integrated CSU/DSU MIB
  • Firmware to support T1 and E1 Layer 1 homologation
  • User-initiated VWIC reset and field-programmable gate array (FPGA) download
  • Voice support (includes DS0-group and PRI-group configuration)
  • MFT VWIC2 has an onboard slot for a multiflex trunk dedicated echo cancellation module
  • Dedicated Echo Cancellation module is not supported on MFT VWIC2 when MFT VWIC2 is used on the Cisco 1751 or 1760

Related Products

Table below shows some related products.

VWIC3-1MFT-T1/E1 1-Port 3rd Gen Multiflex Trunk Voice/WAN Int. Card - T1/E1
VWIC3-2MFT-T1/E1 2-Port 3rd Gen Multiflex Trunk Voice/WAN Int. Card - T1/E1
VWIC3-1MFT-G703= 1-Port 3rd Gen Multiflex Trunk Voice/WAN Int. Card - G.703
VWIC3-2MFT-G703 2-Port 3rd Gen Multiflex Trunk Voice/WAN Int. Card - G.703
VWIC3-4MFT-T1/E1 4-Port 3rd Gen Multiflex Trunk Voice/WAN Int. Card - G.703
VIC3-4FXS/DID Four-Port Voice Interface Card - FXS and DID
HWIC-2FE= Two 10/100 routed port HWIC
HWIC-1FE 1-port 10/100 Routed Port HWIC
HWIC-2T 2-Port Serial WAN Interface Card
HWIC-1T 1-Port Serial WAN Interface Card
HWIC-4T 4-Port Serial WAN Interface Card
EHWIC-1GE-SFP GigE High Speed WIC With One SFP Slot
EHWIC-4ESG Four port 10/100/1000 Ethernet switch interface card w/PoE
